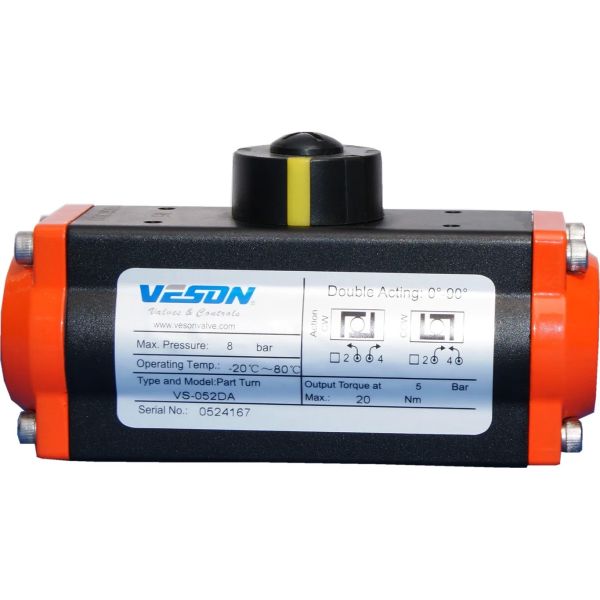

ISO5211 & DIN3337 Standard VS-052~VS-400 Model 50000PC/Y Aluminum Pneumatic Valve Actuator

MOQ : 1

Model NO. : VS-052~VS-400

Power : Pneumatic

Pressure Direction : Double-acting Cylinder

Pinion Material : Hardened alloy steel

Pinion Coating : Nickel plated (over 15um)

Actuator Body Material : Aluminum extrusion

Actuator Coating : Hard anodized (over 30um)

End Cap Material : Die casting aluminum

End Cap Coating : Epoxy coated (over 80um)

Piston Material : Die casting aluminum

Piston Coating : Hard anodized (over 30um)

Travel Adjustment : ±5º in both positions

Spring Material : High tensile steel

Spring Coating : Epoxy coated

Bearings Material : Highly durable compound

Contact Now

Indicator

A position indicator with Namur mounting is standing on all VESON pneumatic actuator for mounting accessories.

Pinion

The hardened alloy steel pinion is precision ground and Nickel plated (over 15um) in order to reduce friction, provide maximum wear resistance. Full conformance with the newest standards of ISO5211 & DIN3337. The dimension can be customized and as options, stainless steel and aluminum alloy are also available.

Actuator Body

The aluminum extrusion is hard anodized (over 30um) to protect against wear and corrosion while reducing piston friction to the minimum. Other options as Epoxy Coated and PTFE Coated are available.

End Cap

Epoxy coated (over 80um) die casting aluminum end caps provide maximum resistant potentially corrosive elements. Other treatments such as PTFE Coated are available.

Piston

The precisely balanced and hard anodized treatment (over 30um) die casting aluminum piston are fitted with high quality and guides. The twin rack and pinion design creates a constant torque output on all actuators.

Travel Adjustment

The standard adjustment is ±5ºin both the open and closed positions through easily accessible external adjustment bolts.

High Performance Springs

The high tensile steel springs are coated with Epoxy coated for corrosion resistance and longer service. The pre-loaded springs can be safely & rapidly disassembled.

Bearings & Guides

The highly durable compound material provides high trust stability with minimum friction and long life.
